Competitive-Priced Diamond Wire Mesh Fence Galvanized Or PVC-Coated
Steel Metal Chain Link Fence
Chain Link Fence, also called Cyclone Fence or Diamond Mesh Fence.
As a versatile Fence, Chain link Fences are the fastest and most
cost effective fence products on the market today. using the woven
steel wire to make the panel, it is widely used in everywhere. Due
to the different applications, it is available in various wire
gauges and mesh sizes. All Chain Link Fence rolls are completed
with line wires and knuckled edges. What’s more, the Chain Link
Fence with barbed edges is more popular and has higher security.
Hot Dipped Galvanized Chain Link Mesh Fence Application:
For slope vegetation protection
For poultry & livestock fencing
For the containment of zoo animals
For defining boundaries like building fences and barriers on yards
or gardens
For sports fields like baseball, football fields and tennis courts
For high security facilities to keep people out without
authorization
For industrial buildings and factories to keep workers away from
places they are not allowed to access to
| Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| Wire Diameter | 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
| 18Ga-13Ga | 16Ga-8Ga | 18Ga-7Ga |
| 1.2-2.4mm | 1.6mm-4.2mm | 2.0mm-5.0mm |
| Length of Roll | 0.5m-100m(or more) |
| Width of Roll | 0.5m-5m |
| Material and specification can be made according to customers'
detailed requirements |
| PVC coated chain link fence |
| Opening | Wire Gauge | Width | Length |
| 60x60mm | 2.0/3.0mm | 0.5-5m | 1.0-50m |
| 50x50mm | 1.8/2.8mm | 0.5-5m | 1.0-50m |
| 50x50mm | 2.0/3.0mm | 0.5-5m | 1.0-50m |
| Remarks: other specifications produced according to your order |
Working With Hot Dipped Galvanized 6 Foot 9 Gauge Chain Link Mesh
Fence For Economical And Secure Fencing:

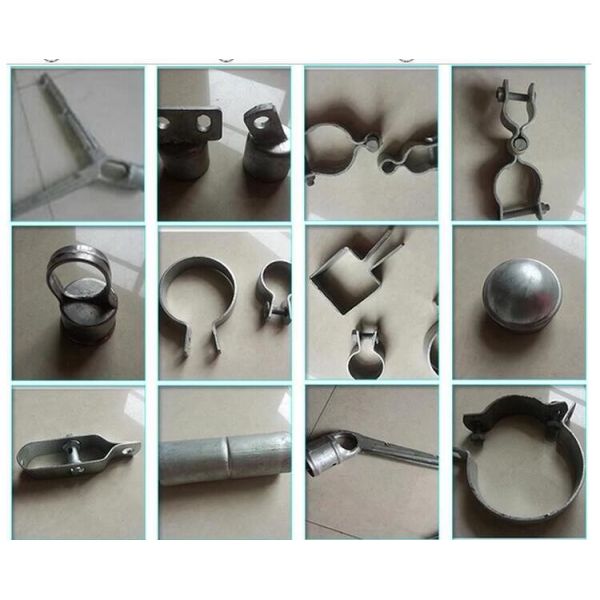

A full chain link fence consists of many parts, especially when you
add gates or build corners. But there are a few major components
common to all chain link fences:
Chain Link Fence: Electro galvanized chain link fence,hot dipped
galvanized chain link fence,PVC coated chain link fence.
Terminal Posts: At each end of a section of fencing is a thick,
sturdy terminal post that provides most of the strength. Terminal
posts are mounted in concrete in the ground.
Line Posts: Line posts go between terminal posts every 8 to 10
feet, divided evenly between terminal posts.

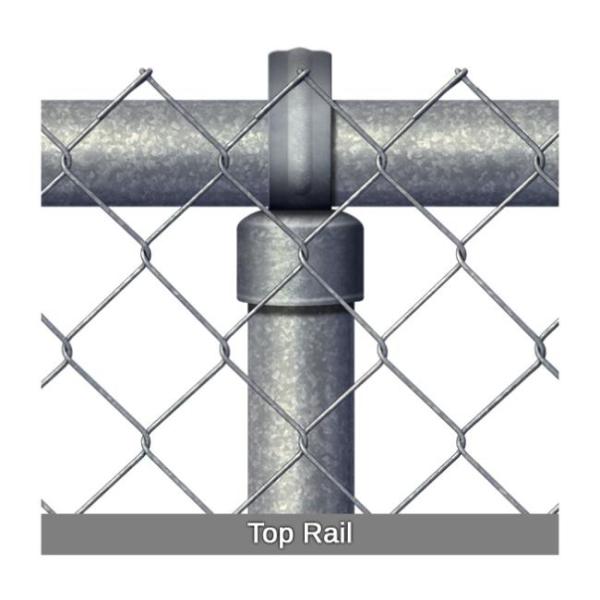

Top Rail: The top rail is a 10-foot, 6-inch metal pipe that runs
across the tops of the terminal and line posts. The top of the
chain link attaches to the top rail.
Tension Bars: Tension bars are flat vertical strips of metal that
weave into the chainlink material. Running parallel to and near the
terminal posts, tension bars help you tighten the chain link
material against the terminal posts.
Tension Bands: Tension bands are open-ended bands that fit over the
terminal posts and attach to the tension bars. Tension bands are
placed about every 12 inches.
Tie Wires: Tie wires or fence ties are 6 1/2-inch-long aluminum
wires that let you attach the chain link to various points on the
posts and top rail.
Terminal Post Caps: Dome-shaped post caps fit over the tops of the
terminal posts to improve the appearance and to prevent debris from
settling in the open-ended posts.
Line Post Eye Tops: Eye tops fit on top of the line posts. The top
rail fits through the circular top (or, the eye) of this piece. The
eye top helps hold the top rail in place.
Rail End: A rail end is a metal cap that fits over both ends of a
top rail, helping to hold the top rail to the terminal posts.
